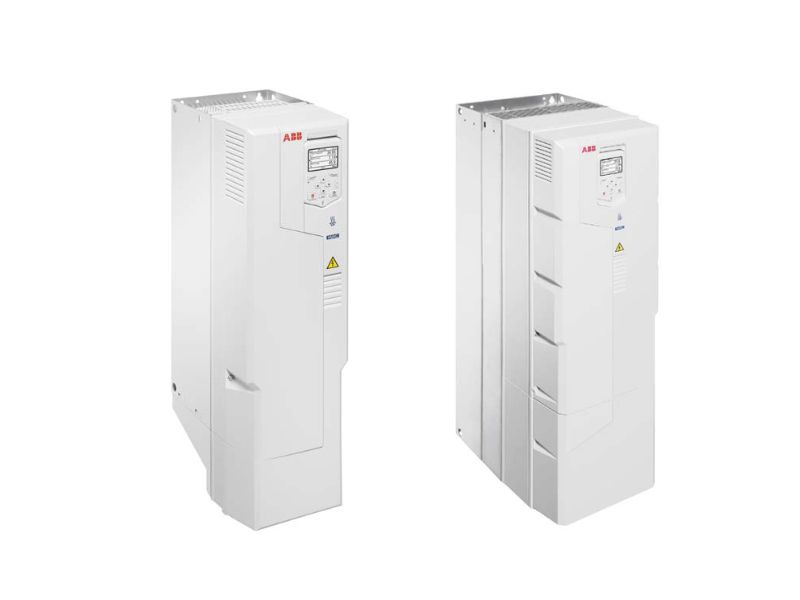

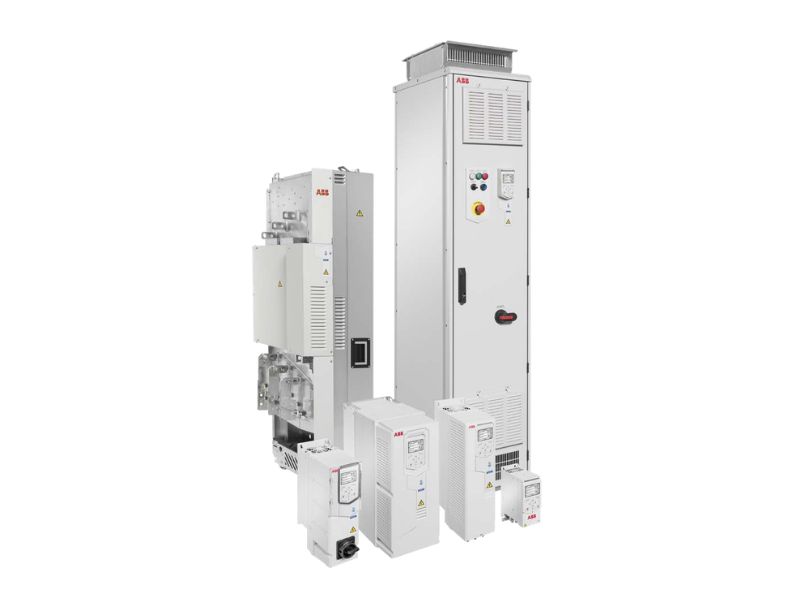

ABB ACH 580

A premium, all-compatible HVAC drive designed to maintain perfect environmental conditions while maximizing energy savings in commercial buildings.

Product Overview

The ABB ACH580 VFD is an all-compatible HVAC drive designed for efficient control of heating, ventilation, and air conditioning systems. It comes with built-in HVAC functionalities, energy optimization, and seamless integration, helping reduce operating costs while ensuring reliable performance in commercial buildings and infrastructure.

Key Features

  • Designed specifically for HVAC applications
  • Built-in HVAC application macros (fans, pumps, AHU, cooling towers)
  • Integrated PID controller for precise process control
  • Energy optimizer with energy monitoring (kWh, CO₂, cost)
  • Built-in Safe Torque Off (STO – SIL 3, PL e)
  • Assistant control panel with multilingual support
  • Bluetooth control panel option for wireless commissioning
  • Coated circuit boards for harsh environments
  • Built-in EMC filter and choke
  • Adaptive programming (mini PLC functionality)

Technical Specifications

ParameterDetails
Voltage / Power3-phase: 200–240 V and 380–480 V
0.75 to 500 kW

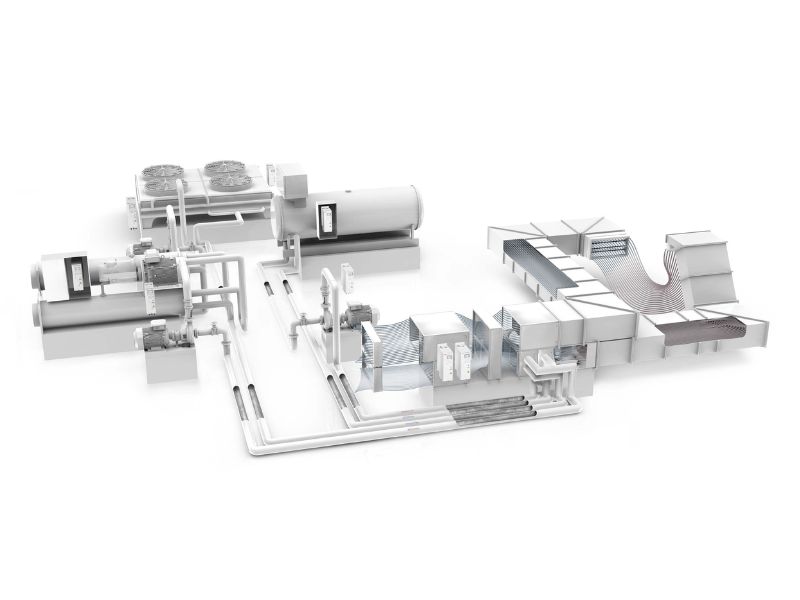

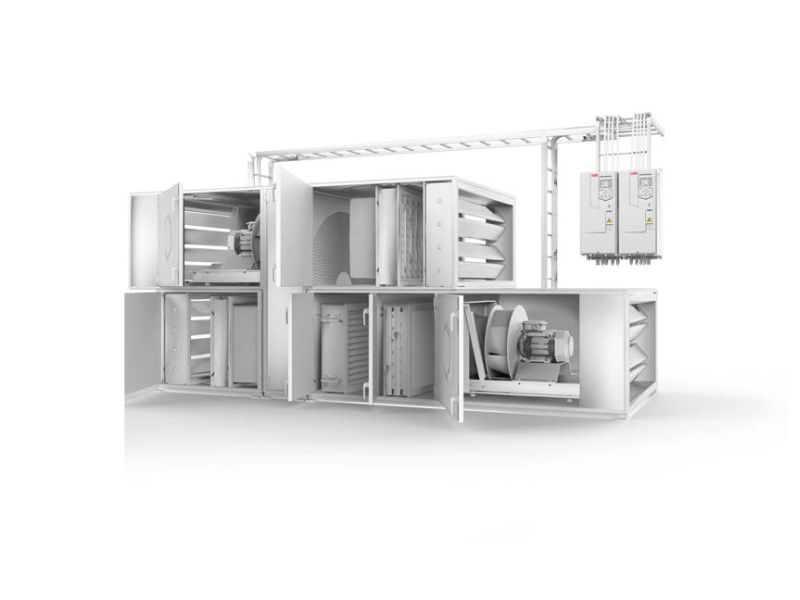

ApplicationsAir Handling Units (AHU)
HVAC systems
Cooling towers
Pumps and booster systems
Ventilation and exhaust fans
Chillers and compressors
Protection ClassesIP21 (standard), IP55 (optional)
Safe Torque Off (STO – SIL 3, PL e)
Motor ControlScalar control
Vector control
Supports induction and permanent magnet motors
Output frequency: 0 to 500 Hz
I/O ConfigurationDigital Inputs: 6 DI
Analog Inputs: 2 AI
Analog Outputs: 2 AO
Relay Outputs: 3 RO
Built-in STO
Expandable via I/O modules
FieldbusModbus RTU (EIA-485)
Optional:BACnet, PROFINET, EtherNet/IP, EtherCAT, CANopen, Modbus TCP
Cable LengthTypically up to 300 meters (depends on configuration)
Overload (HD)110% overload capacity for 1 minute every 10 minutes (HVAC duty profile)
