Inovance MD 200

A compact, easy-to-use drive designed for high-performance control in small-scale automated applications.

Product Overview

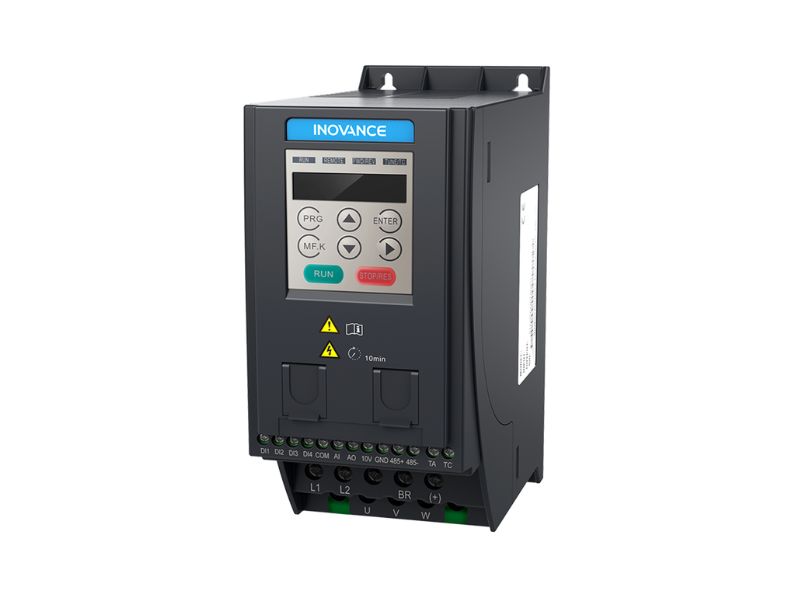

The Inovance MD200 is a new, general-purpose compact AC drive designed for open-loop applications. It features a wide operating voltage range and high performance in a small footprint, offering simplified startup and flexible installation modes including side-by-side and DIN rail mounting.

Key Features

  • Versatile Motor Control: Supports both induction motor (IM) and permanent magnet (PM) motor control.
  • High Starting Torque: Provides 150% starting torque at 3 Hz in Sensorless Vector Control (SVC) mode.
  • Advanced Motion Profiles: Features two independent S-ramps for smooth acceleration and deceleration.
  • Integrated Braking: Equipped with a built-in dynamic braking unit and variable DC injection braking.

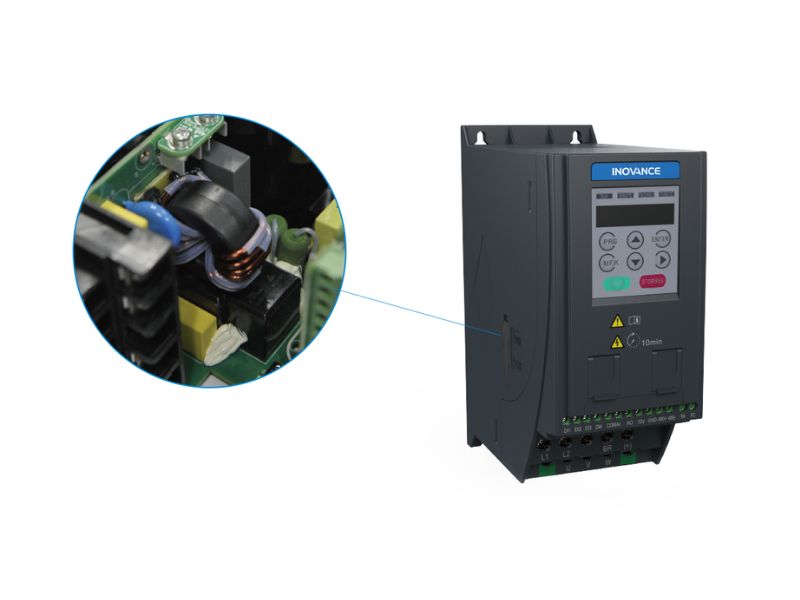

  • Robust Design: Enhanced reliability with Class 2 conformal coating, resistant to 3C3 and 3S2 environments (humidity and dust).

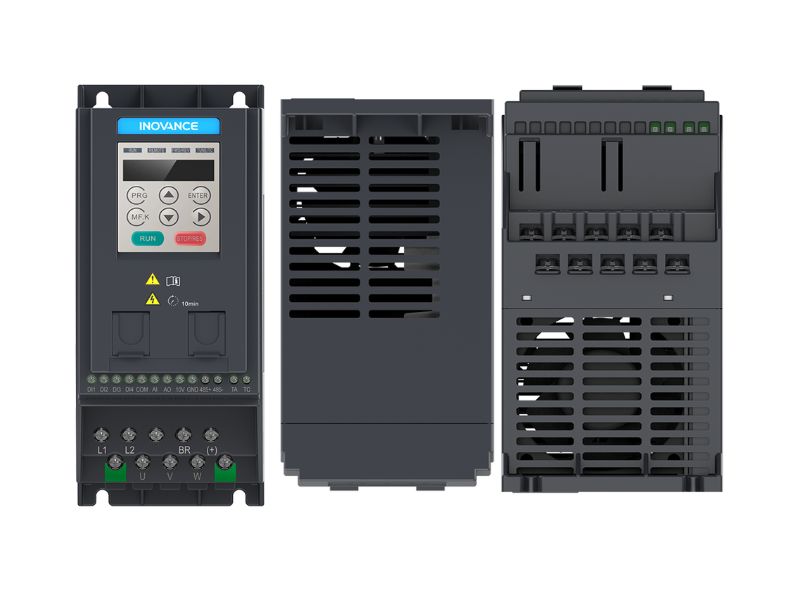

  • Compact Installation: Designed for side-by-side mounting and operation in high ambient temperatures up to 50°C (with derating above 40°C).
  • Simplified Setup: Easy startup with simplified parameters and PC-based software for backup.

Technical Specifications

ParameterDetails
Voltage / Power1-phase: 200–240 Vac (-15% to +10%), 0.4 to 2.2 kW.
3-phase: 380–480 Vac (-15% to +10%), 0.4 to 3.7 kW.
ApplicationsGeneral-purpose compact drive for open-loop machinery and automated systems.
Protection ClassesIP20 enclosure rating. Conformal coating resistant to 3C3 and 3S2 environments.
Motor ControlOpen-loop V/F and Sensorless Vector Control (SVC). Automatic torque boost and slip compensation. Max output frequency: 500 Hz.
I/O ConfigurationFlexible programmable I/Os. Analog input selectable via jumper for voltage or current.
FieldbusBuilt-in: Modbus RTU.
Optional: CANlink (Inovance proprietary).

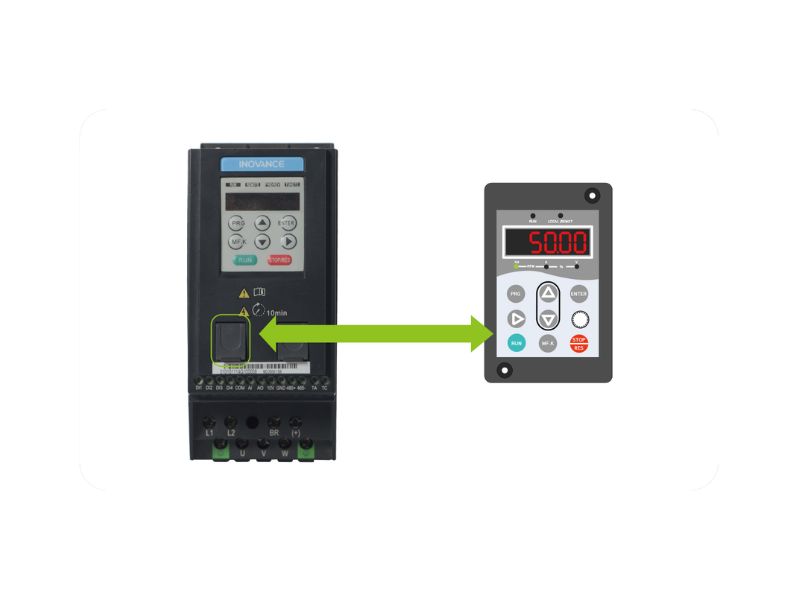

Cable LengthRemote keypads include a 3.0 m matching cable (MDCAB).
Overload (HD)150% for 60 seconds and 180% for 3 seconds.
