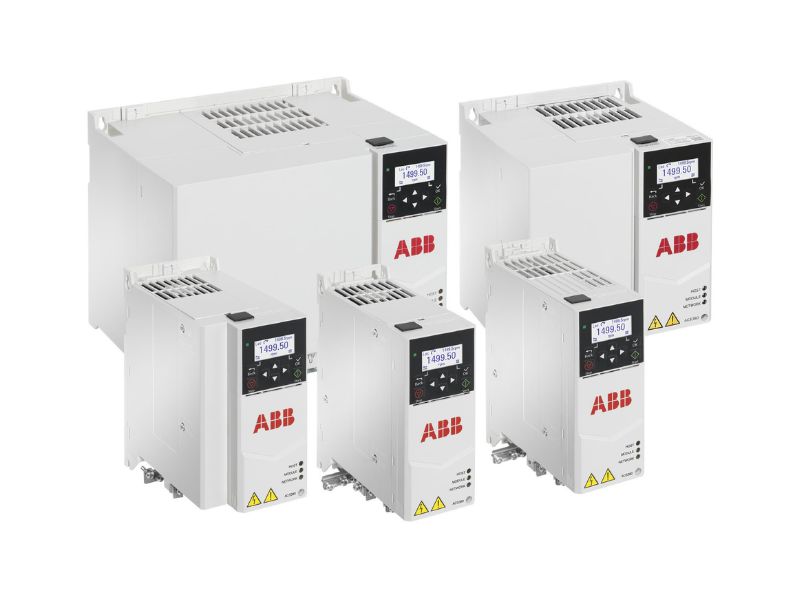

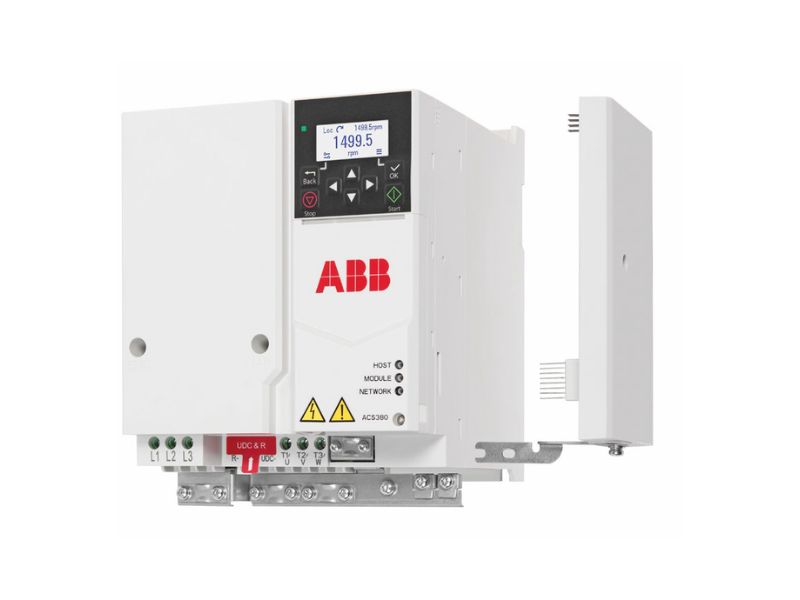

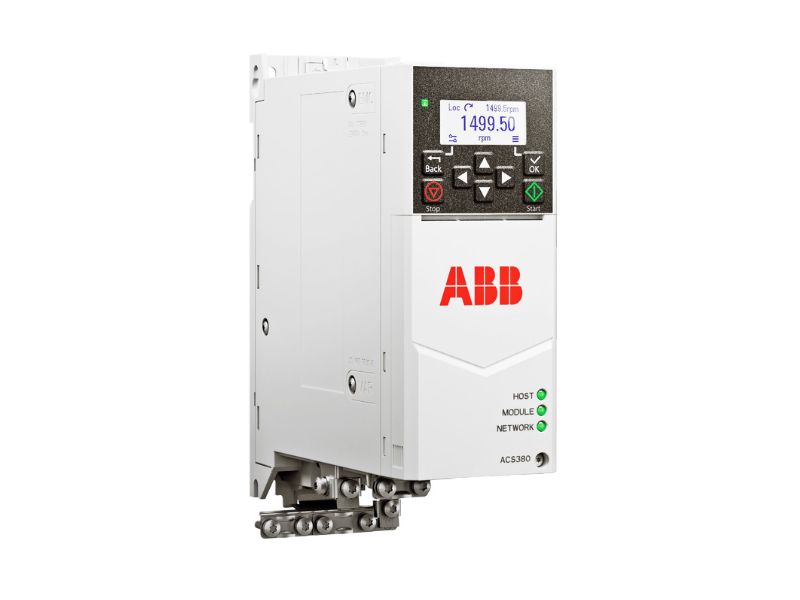

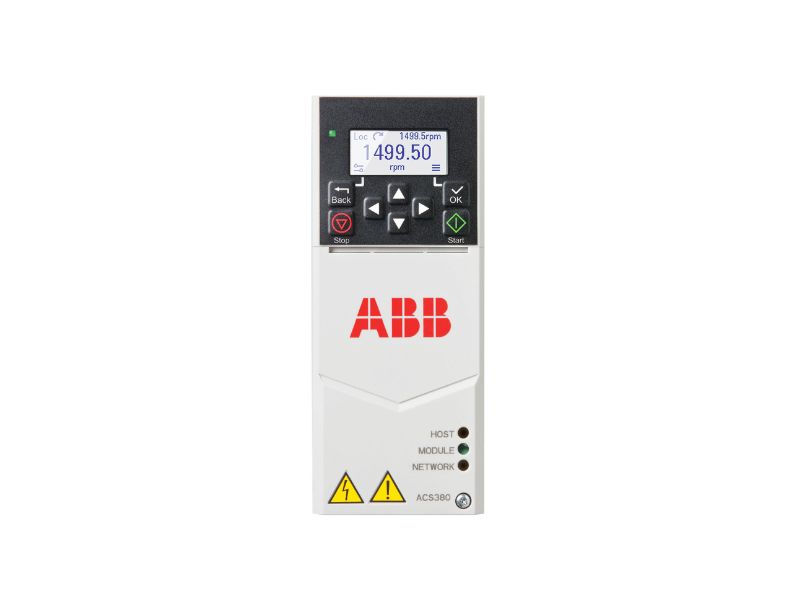

ABB ACS 380

A high-speed, integrated machinery drive designed to offer seamless performance for automated machine building and OEMs.

Product Overview

The ABB ACS380 VFD is a high-performance machinery drive designed for machine builders requiring reliable operation, precise motor control, and seamless integration. Part of ABB’s all-compatible drives portfolio, it offers consistent performance, flexible connectivity, and built-in safety features, making it ideal for a wide range of industrial applications.

Key Features

  • Excellent motor control with or without encoder feedback
  • Supports induction, permanent magnet, and synchronous reluctance motors
  • Built-in Safe Torque Off (STO – SIL 3, PL e)
  • Adaptive programming (mini PLC functionality)
  • Integrated brake chopper for dynamic braking
  • BuEasy integration with PLC via preconfigured fieldbus protocols
  • Wide range of fieldbus options (PROFINET, EtherCAT, Modbus TCP, etc.)
  • Designed for harsh environments (coated PCBs, up to 50°C operation)
  • Long service life (10–20 years typical)
  • All-compatible user interface (same as ACS480, ACS580, ACS880)
  • Built-in crane control features (anti-sway, brake logic, S-curve ramp)
  • Bluetooth-enabled control panel option

Technical Specifications

ParameterDetails
Voltage / Power1-phase: 200–240 V, 0.25 to 3 kW
3-phase: 200–240 V, 0.25 to 15 kW, 380–480 V, 0.37 to 22 kW
ApplicationsConveyors and material handling
Mixers and extruders
Textile machinery
Cranes (EOT & tower cranes)
Food & beverage processing
Plastics and packaging industries
Protection ClassesIP20 (standard)
Motor ControlScalar control
Vector control (open & closed loop)
Output frequency: 0 to 599 Hz
High dynamic response and torque control accuracy

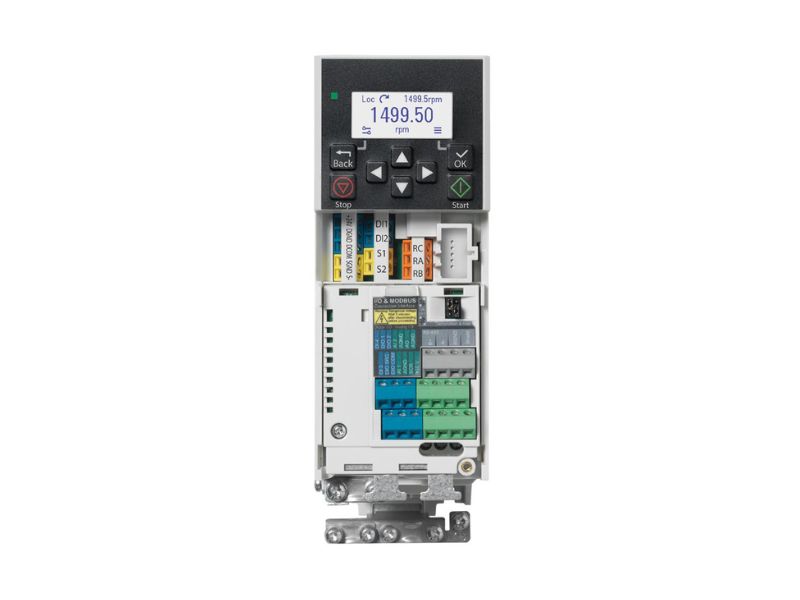

I/O ConfigurationDigital Inputs: 2 (expandable)
Analog Inputs: 2
Digital Outputs: configurable
Analog Outputs: 1
Relay Outputs: 1 (expandable)
Optional I/O expansion modules available
FieldbusBuilt-in: Modbus RTU
Optional: PROFINET, EtherNet/IP, EtherCAT, CANopen, PROFIBUS-DP, Modbus TCP
Cable LengthTypically up to 100 meters (depends on EMC class, motor type, and installation conditions)
Overload (HD)150% overload capacity for 1 minute every 10 minutes
