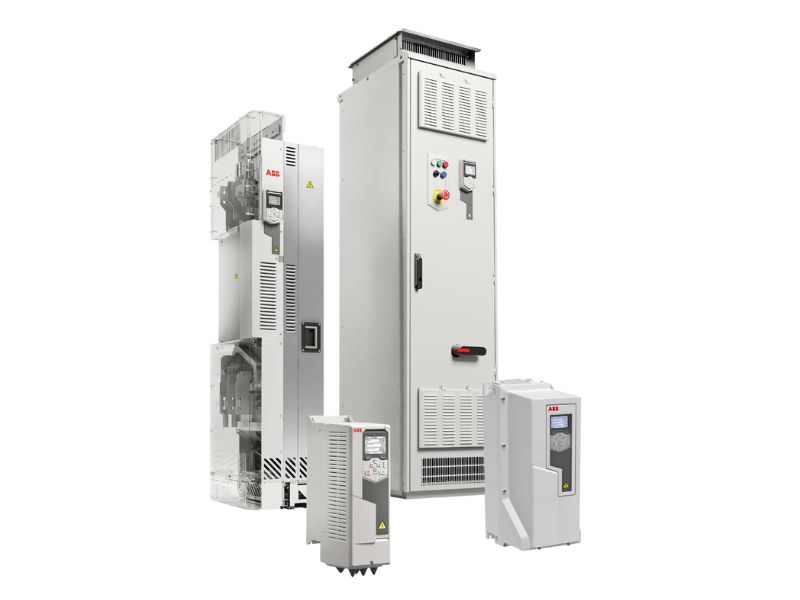

ABB ACS 580

A versatile general-purpose drive that simplifies motor control for a wide range of standard industrial applications.

Product Overview

The ABB ACS580 VFD is an all-compatible general-purpose drive designed to simplify industrial processes while improving efficiency and reliability. It comes with all essential features built-in, reducing commissioning time and enabling seamless control of a wide range of applications such as pumps, fans, compressors, conveyors, and mixers.

Key Features

  • All-compatible platform with common interface across ABB drives
  • Built-in Safe Torque Off (STO – SIL 3, PL e) for safety
  • Integrated PID controller for process control (flow, pressure, level, etc.)
  • Energy optimizer and energy monitoring (kWh, CO₂, cost)
  • Adaptive programming (mini PLC functionality)
  • Wide fieldbus compatibility (PROFINET, EtherCAT, Modbus TCP, etc.)
  • Built-in EMC filter and choke for reduced harmonics
  • Robust design with coated boards for harsh environments

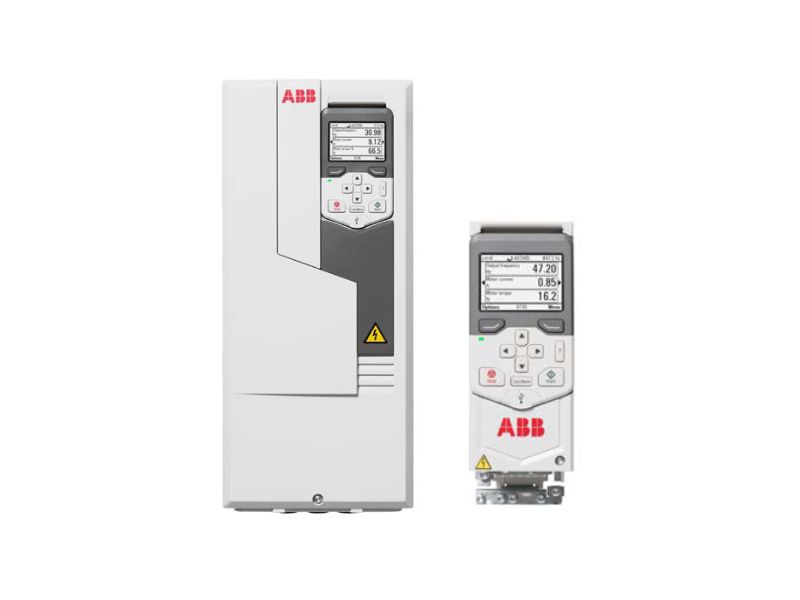

  • Assistant control panel with multiple language support
  • Bluetooth control panel option for wireless commissioning
  • Cavitation control and compressor control features
  • Easy commissioning with application macros

Technical Specifications

ParameterDetails
Voltage / Power3-phase: 200–240 V and 380–480 V
0.75 to 500 kW
ApplicationsPumps and fans
Compressors and refrigeration systems
Conveyors and material handling
Mixers and extruders
HVAC systems
Textile, food & beverage, agriculture industries
Protection ClassesIP21 (standard), IP55 / IP54 (optional)
Safe Torque Off (STO – SIL 3, PL e)
Motor ControlScalar control
Vector control
Supports induction, permanent magnet, and synchronous reluctance motors
Built-in PID controller for process automation
I/O ConfigurationDigital Inputs: 6 DI
Analog Inputs: 2 AI
Analog Outputs: 2 AO
Relay Outputs: 3 RO
Built-in STO
Expandable via I/O modules
FieldbusBuilt-in: Modbus RTU (EIA-485)
Optional: PROFINET, EtherNet/IP, EtherCAT, CANopen, PROFIBUS-DP, Modbus TCP
Cable LengthStandard: 100–150 meters
Maximum (functional): up to 300 meters (depending on configuration)
Overload (HD)150% overload capacity for 1 minute every 10 minutes
